1. Introduction

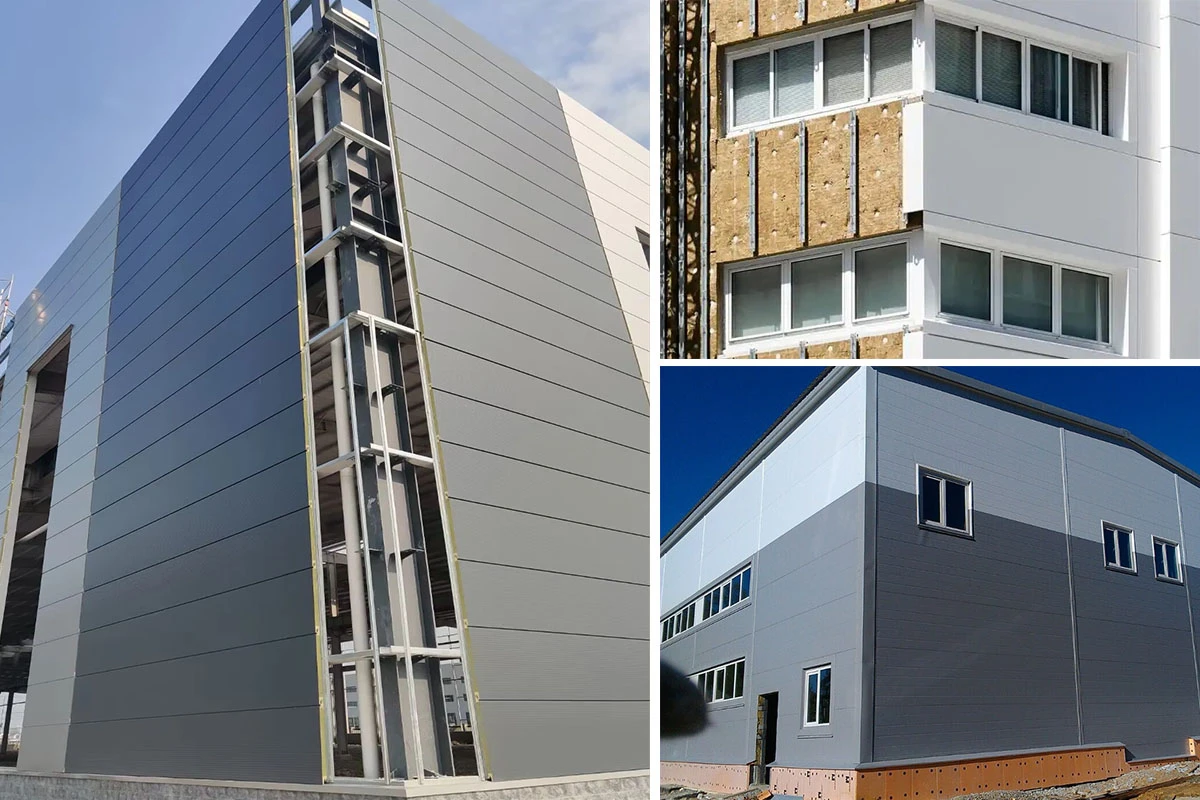

Building facade insulation materials are specialized components integrated into the external envelope of structures to significantly reduce heat transfer between the interior and exterior environments. Their primary function is thermal regulation, minimizing heating and cooling energy demands, enhancing occupant comfort, preventing condensation, and contributing to overall building energy efficiency and sustainability goals. As global emphasis on energy conservation and carbon reduction intensifies, the role of facade insulation has become paramount in modern construction.
2. Definition and Core Function
Facade insulation materials are defined as substances or composites applied to a building's external walls (including above-grade walls, spandrels, and sometimes below-grade sections like basements) with low thermal conductivity (k-value or lambda value, λ). Their core function is to provide thermal resistance (R-value), impeding the flow of heat. This resistance is quantified by the R-value (R = thickness / λ), where a higher R-value indicates superior insulating performance. Effective facade insulation is crucial for meeting stringent building energy codes worldwide.
3. Categories of Facade Insulation Materials
These materials are broadly classified based on their chemical composition and structure:
3.1. Organic Foam Plastics
Expanded Polystyrene (EPS): White, rigid foam beads fused together. Lightweight, cost-effective, good moisture resistance (though permeable), recyclable. R-value ~3.2-4.0 per inch. Susceptible to UV and solvent damage. Requires fire retardants.
Extruded Polystyrene (XPS): Blue/green/pink rigid foam with a closed-cell structure formed by extrusion. Higher compressive strength, excellent moisture resistance (vapor barrier), higher R-value (~4.5-5.0 per inch) than EPS, durable. Higher embodied energy, potential for global warming potential (GWP) from blowing agents.
Polyisocyanurate (PIR) / Polyurethane (PUR): Rigid foams often faced with foil or fiberglass. Highest R-value per inch (~5.6-8.0) initially; slight aging occurs. Excellent fire resistance (char-forming), good dimensional stability. Higher cost, R-value degrades slightly over time (aging), sensitive to installation quality. PIR generally superior to PUR in fire performance.
3.2. Inorganic Fibrous Materials
Mineral Wool (Rock Wool & Slag Wool): Fibers spun from molten rock or slag. Excellent fire resistance (non-combustible, Euroclass A1), good acoustic insulation, vapor permeable, resistant to pests and rot. Higher density than foams, lower R-value (~3.0-3.3 per inch), can absorb moisture if not protected (reducing R-value).
Glass Wool (Fiberglass): Fibers spun from molten glass. Good fire resistance (typically Euroclass A1/A2), good acoustic properties, vapor permeable, cost-effective. Lower R-value (~2.9-3.8 per inch) than foams/PIR, susceptible to moisture absorption and compaction, requires careful handling (skin/eye irritation).
3.3. Innovative & Natural Materials (Gaining Traction)
Aerogels: Highly porous silica-based materials. *Exceptional R-value (~8.0-10.0 per inch)*, very thin profiles possible, hydrophobic. Extremely high cost, fragile, complex installation.
Vacuum Insulation Panels (VIPs): Core material (fumed silica, fiberglass) encased in gas-tight film under vacuum. *Ultra-high R-value (~15-30 per inch)*, extremely thin. Very high cost, puncturing destroys performance, limited panel sizes, complex detailing.
Wood Fiber Boards: Made from compressed wood fibers. Renewable, good moisture buffering, vapor permeable, good acoustic properties. Lower R-value (~2.5 per inch), thicker profiles needed, requires protection from sustained moisture.
Cork Boards: Harvested from cork oak bark. Renewable, natural fire resistance, good acoustic and vibration damping, resilient. Lower R-value (~2.8-3.5 per inch), higher cost than conventional options.
4. Key Characteristics and Performance Criteria of Facade Insulation Materials
| Property | Definition & Measurement | Significance in Facade Applications |
|---|---|---|
| Thermal Conductivity (λ) | Rate of heat transfer through material (W/m·K) Lower value = Better insulation |
Core performance indicator; determines required thickness for target R-value |
| Thermal Resistance (R-value) | Resistance to heat flow (m²·K/W) Formula: R = Thickness / λ Higher value = Better performance |
Key compliance metric for building codes; directly impacts energy efficiency |
| Fire Performance | Reaction-to-fire classification (e.g., Euroclass A1-A2/B-C) Includes smoke/droplet ratings |
Critical for facade safety; determines fire spread risk and regulatory compliance (post-Grenfell focus) |
| Water Vapor Permeability (µ) | Ease of vapor diffusion through material Higher µ = More "breathable" |
Prevents interstitial condensation; essential for moisture management in vapor-open assemblies |
| Water Absorption | % water uptake by volume/weight when immersed Lower absorption = Better moisture resistance |
Maintains R-value in wet conditions; prevents mold growth and structural degradation |
| Compressive Strength | Load-bearing capacity under compression (kPa) | Supports cladding weight; withstands wind loads and installation traffic (critical for ETICS/ventilated facades) |
| Dimensional Stability | Resistance to shrinkage/swelling under thermal/humidity cycles (%) | Prevents gap formation at joints; maintains continuous insulation layer integrity |
| Environmental Impact | - Embodied energy (MJ/kg) - Global Warming Potential (GWP) - Recycled content/recyclability - Renewability |
Growing regulatory focus; impacts carbon footprint and circular economy alignment (EPD certifications required) |
| Long-term Durability | Resistance to: - Thermal aging - UV degradation - Biological attack - Physical damage |
Ensures consistent performance over building lifespan (>25 years); prevents R-value degradation |
| Acoustic Performance | Sound Absorption Coefficient (αw) / Sound Reduction Index (Rw) in dB | Added benefit for noise-sensitive locations; fibrous materials (mineral/wood wool) outperform foams |
| Performance Priority | Material Selection Guidance |
|---|---|
| Maximize Insulation | Prioritize ultra-low λ materials (VIPs, Aerogels, PIR) where budget allows |
| Fire Safety Critical | Mandate Euroclass A1 materials (Mineral Wool) in high-rises; avoid combustible organics |
| Moisture Exposure | Select hydrophobic materials (XPS, PIR) for foundations; vapor-open materials (MW) for breathable walls |
| Sustainability Focus | Choose bio-based materials (wood/cork fiber) or recycled-content products (e.g., MW from slag) |
| Space Constraints | Opt for thin high-performance solutions (VIPs, Nanogel) in retrofits |
5. Primary Applications in Building Facades
Insulation is integrated into facade systems in several key ways:
5.1. External Thermal Insulation Composite Systems (ETICS) / Rendering Systems
The most common application globally. Insulation boards (EPS, MW, XPS common) are adhesively and mechanically fixed to the structural wall. A base coat with reinforcement mesh is applied, followed by a protective and decorative render (plaster). Provides continuous insulation, minimizes thermal bridging.
5.2. Ventilated Rain Screens / Curtain Walls
Insulation boards (MW, PIR, EPS, XPS) are fixed to the structural wall or within a cavity. An outer cladding layer (brick, metal, wood, composite panels, terracotta) is mounted on a sub-structure, creating a ventilated cavity that drains moisture and can reduce solar heat gain. Excellent moisture management and design flexibility.
5.3. Insulated Concrete Forms (ICFs)
Rigid foam insulation (EPS or XPS) acts as permanent formwork for poured concrete walls. The insulation remains on both interior and exterior faces, creating a high-performance monolithic wall assembly.
5.4. Structural Insulated Panels (SIPs)
Rigid foam core (EPS, PIR, XPS) sandwiched between two structural facings (OSB, plywood, metal). Used as prefabricated wall panels offering high insulation and fast construction.
5.5. Insulation within Cavity Walls
Insulation (MW batts, blown-in EPS beads, PIR boards) is placed within the cavity of traditional masonry or frame walls. Requires careful detailing for moisture control.
5.6. Below-Grade Applications (Foundation Walls)
Requires high compressive strength and excellent moisture resistance. XPS is the dominant material here due to its performance in wet conditions.
6. Trends and Future Developments
The evolution of facade insulation materials centers on achieving revolutionary thermal performance and intrinsic fire safety. Future materials will prioritize ultra-low thermal conductivity (λ ≤ 0.020 W/m·K) through advanced nanoporous structures like aerogel composites and robust vacuum insulation panels, enabling high R-values in slimmer profiles-critical for space-constrained retrofits and maximizing interior volumes. Simultaneously, non-combustible formulations will dominate, with mineral wool enhanced for higher R-value and next-generation foams (PIR/XPS) embedding char-forming polymers and ceramic microcapsules to achieve Euroclass A fire ratings without protective claddings. Hybrid systems will strategically layer these materials-placing fireproof mineral wool near cladding and ultra-insulating aerogels adjacent to structural walls-to optimize both safety and thermal efficiency. As material science advances, multifunctional insulators will emerge, integrating phase-change materials for dynamic heat buffering and hydrophobic nanoparticles for moisture-resilient R-value stability. These innovations will expand insulation applications beyond conventional walls to thermal bridges (balconies, joints), prefab volumetric modules, and energy-active facades that dynamically regulate heat flow, transforming insulation from passive layers into responsive building systems.
